Item Number: AB14-G


Key Features:

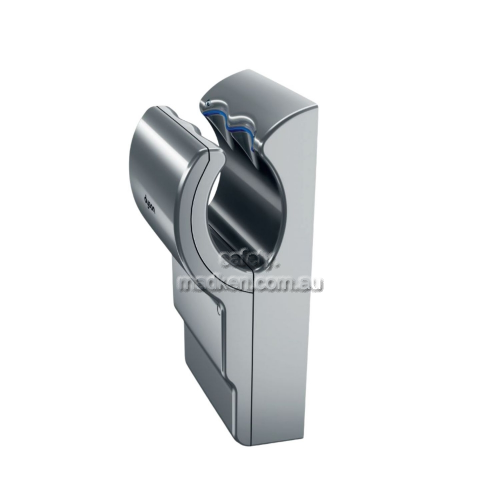

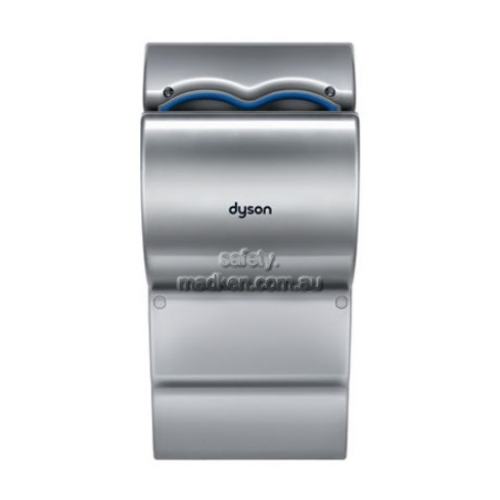

Re-introducing Dyson Airblade dB AB14- New and Improved with a reprogrammed digital motor V4
10 second dry time - reducing queue times
Airblade technology forces sheets of air at 690km/h - drying hands quickly and hygienically
The digital motor V4 uses digital pulse technology to spin at up to 90000rpm – up to three times faster than a conventional motor
Draws up to 30 litres of air per second through the machine
Features a HEPA filter that captures 99.95% of bacteria-sized particles from the washroom air
Hygienic - Antibacterial coating and touch-free operation
Made from tough durable ABS polycarbonate
HACCP accredited - The only hand dryer certified for use in food preparation environments by the HACCP International standards.
5 year warranty


Electrical Specifications:

Frequency: 50 & 60 Hz
Input Voltage: 200-240
Rated power: 1600 W
Motor type: Dyson digital motor V4
Motor switching rate: 6000 per second
Motor speed: 90000 rpm
Standby power consumption: Less than 0.5 W
Decibel Level: 84 dB
Operating temperature range: 0°– 40°C
Heater type: None
Hard wired


Construction Specifications:

Casing construction: Polycarbonate-ABS casing
Antibacterial coating type: Moulded additive
Colour finish: Grey
Light reflective value: 28.3 (grey)
Galvanised steel back plate/mounting bracket
Exterior screw type: Anti-tamper M6 machine screw
Water ingress protection to IP35
Dimensions: 303mm W x 661mm H x 247mm L
Net weight: 8.2kg
Packaged weight: 11kg


Filter Specifications:

HEPA filter (glass fibre and fleece prelayer)
Bacteria removal 99.9%


Operation:

Touch-free infra-red activation
Hand dry time measurement: 10 seconds. (Measurement based on National Sanitation Foundation Protocol P.335)
Operation lock-out period: 30 seconds
Airspeed at apertures: 690 km/h
Operating airflow: Up to 30 l/s



Code	Size	Dimensions	Weight	Colours
AB14-G	661mm H x 303mm W x 247mm D	74W x 36H x 31D (cm)	11.00 (kgs)	Grey
